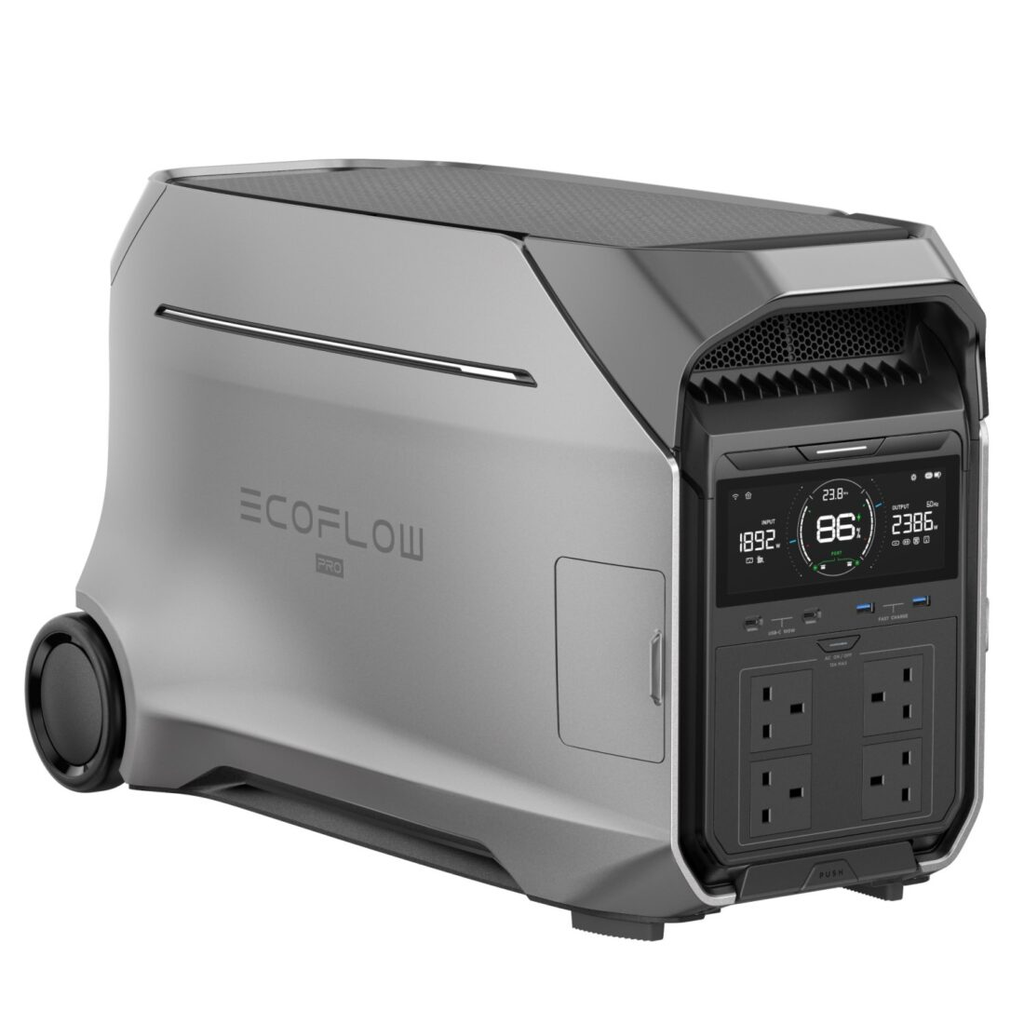

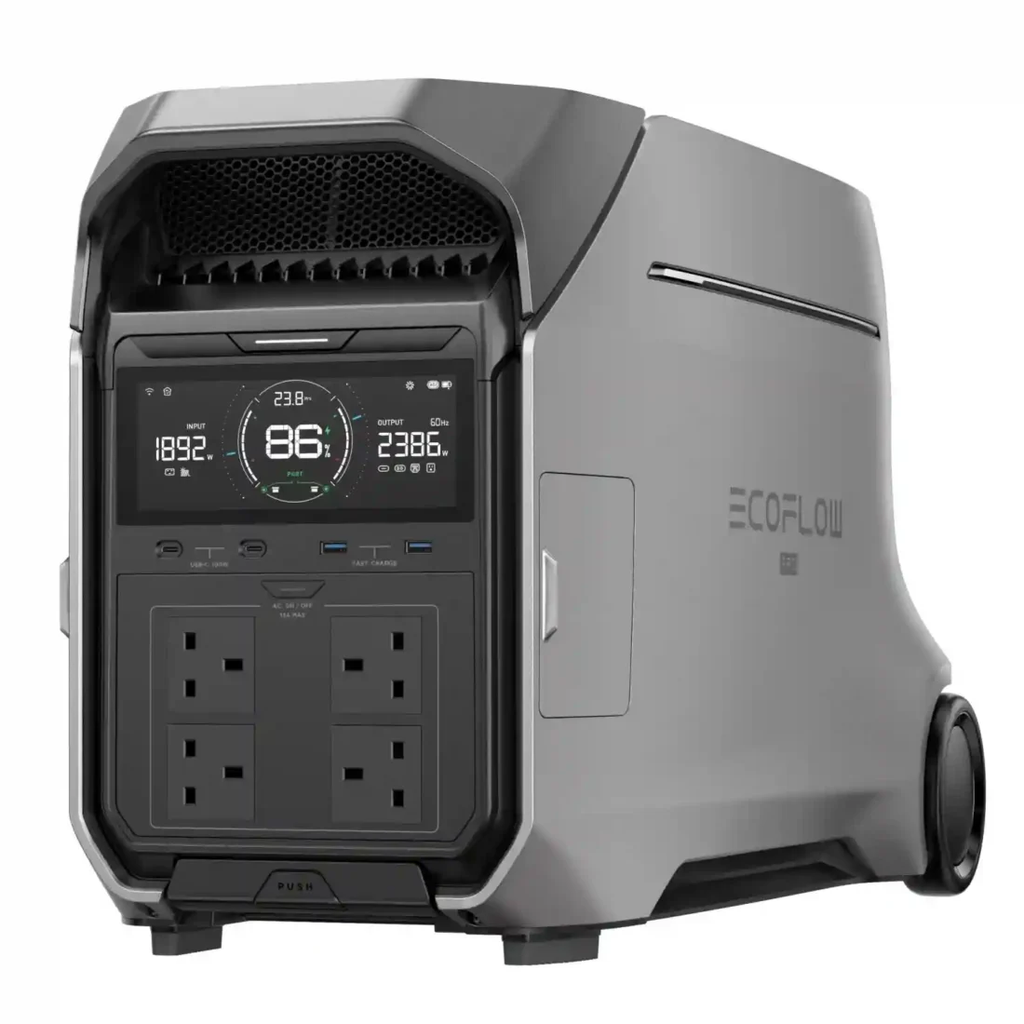

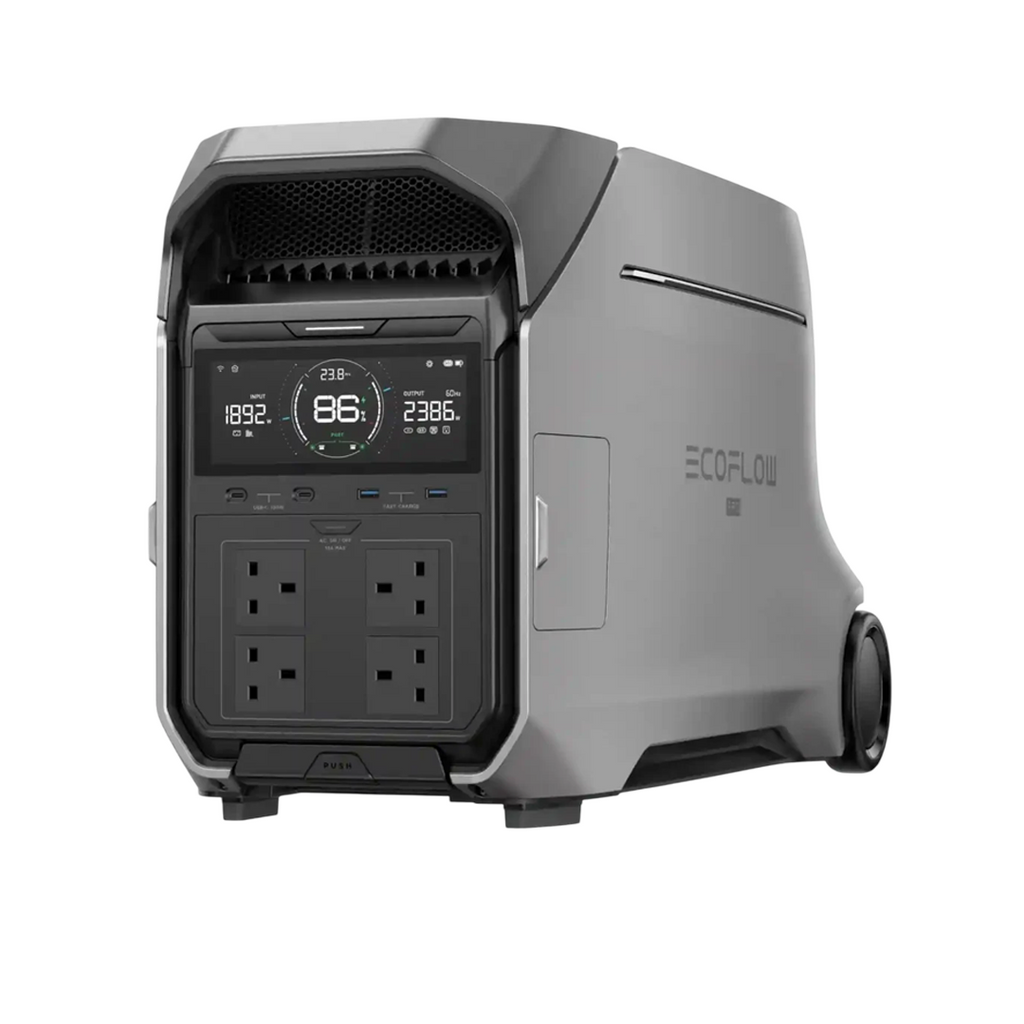

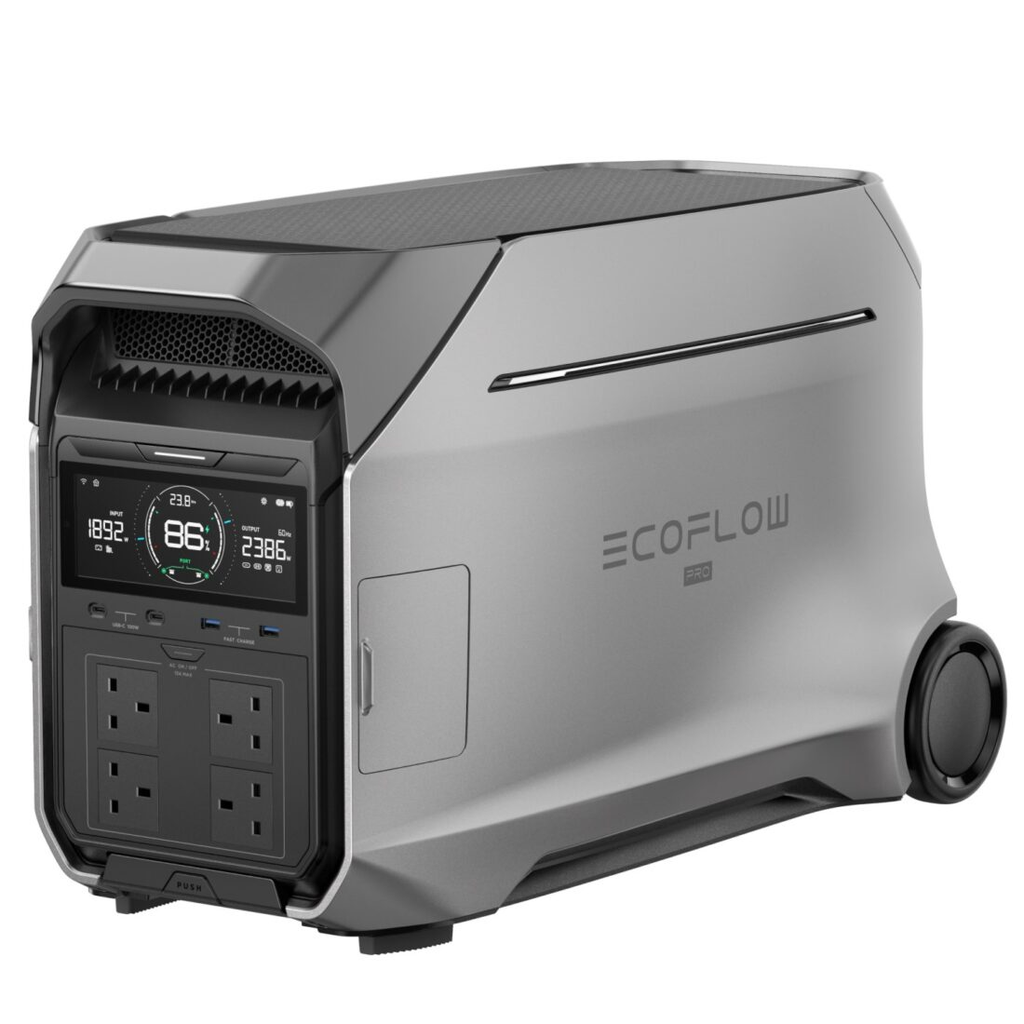

ECOFLOW DELTA Pro 3 Portable Power Station

ECOFLOW DELTA Pro 3 Portable Power Station

The EcoFlow DELTA Pro 3 is a next-generation portable power station built for home backup, road trips, and off-grid living. With a 4kWh LFP battery, ultra-fast charging, whisper-quiet operation, and expandable capacity up to 12kWh, it’s the ultimate power solution for any situation.

Key Features:

• Model: DELTA Pro 3

• Battery Capacity: 4096Wh

• Output Power: 4000W continuous (Surge 8000W, 400ms)

• Outlets: 4 × 230V/16A

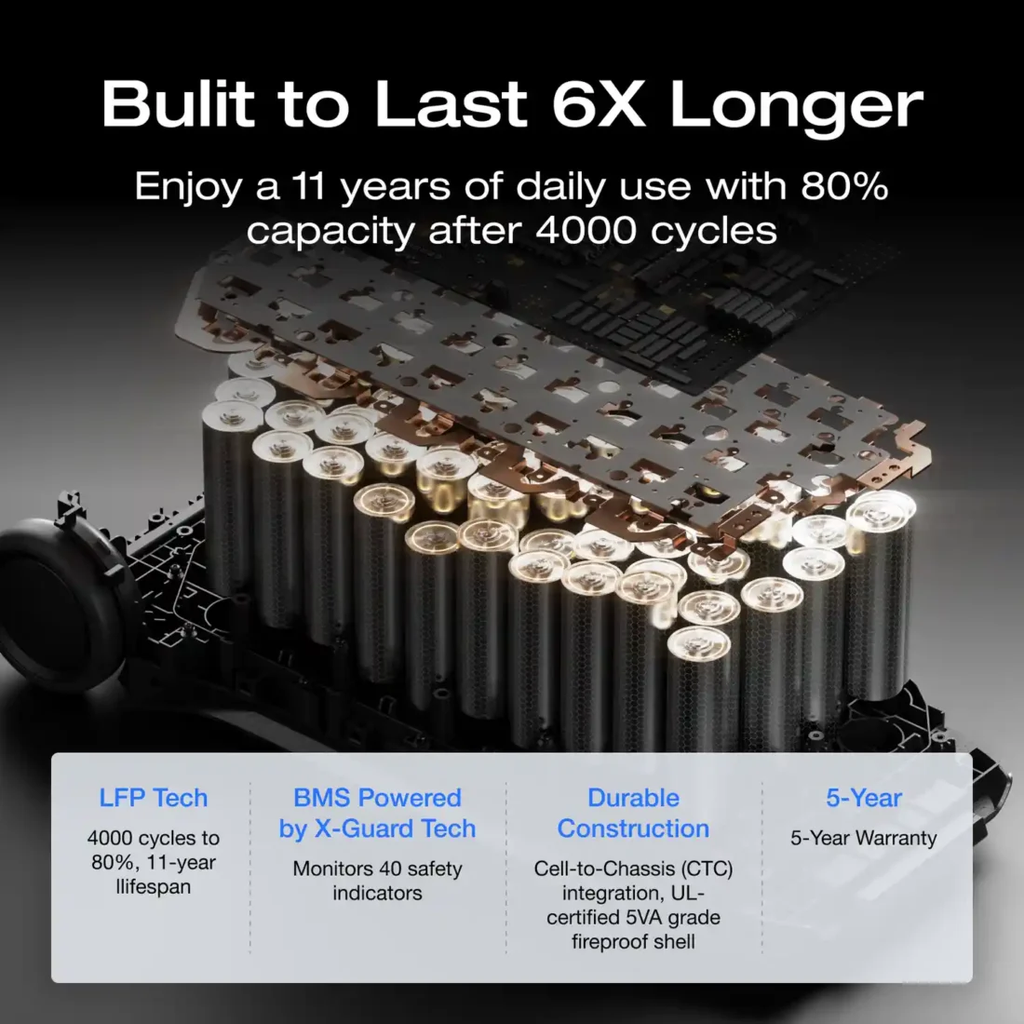

• Battery Chemistry: LFP (LiFePO4) for long life and safety

• Cycle Life: 4000+ cycles to 80% capacity

• Recharge Time: 0–80% in 50 minutes (with EV fast charging)

• Noise Level: 30dB (at half load, under 2kW, 25°C, 1m)

• Charging Methods: AC wall, generator, alternator, dual PV solar (2600W max), EV station (4000W max), vehicle port

• Connectivity: WiFi 2.4GHz / Bluetooth / CAN, app control

• Extra Battery Support: Expandable up to 12kWh with 2 extra batteries

• UPS Function: <10ms switchover time

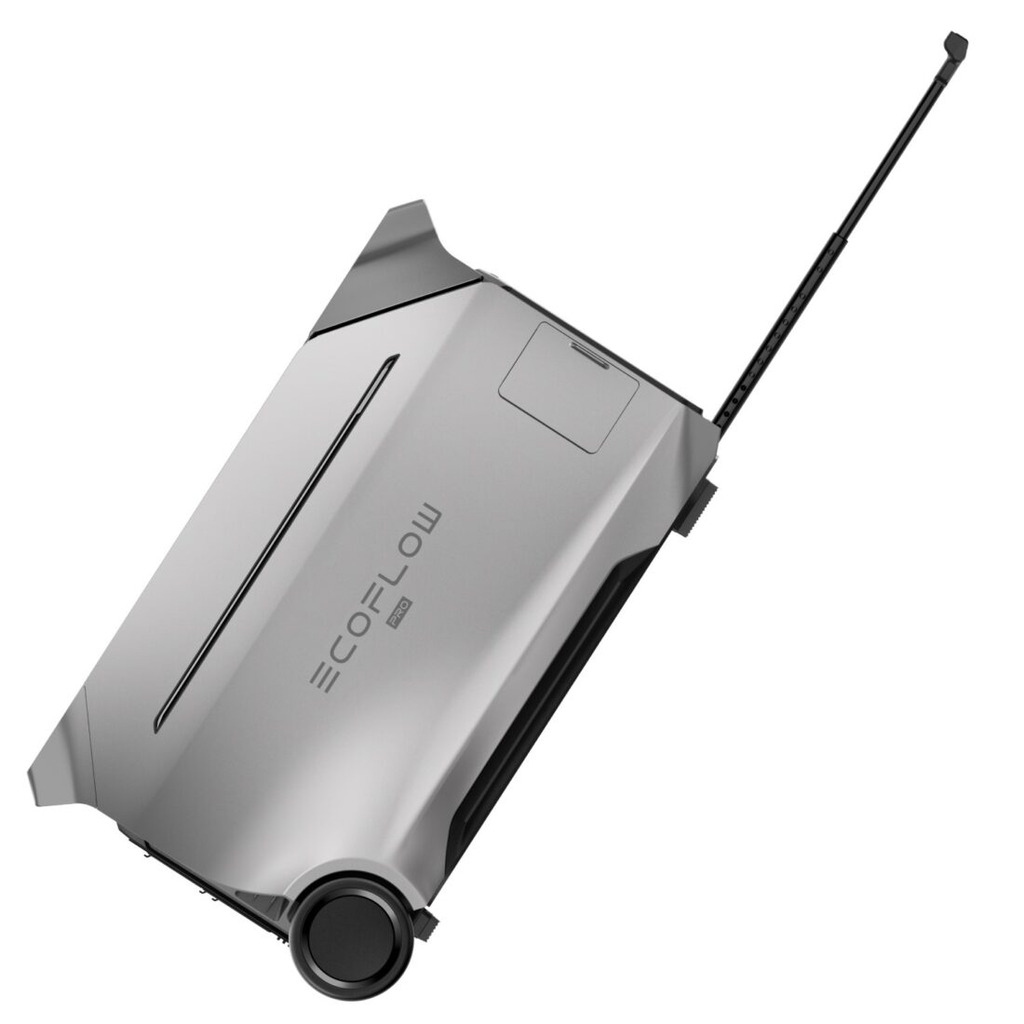

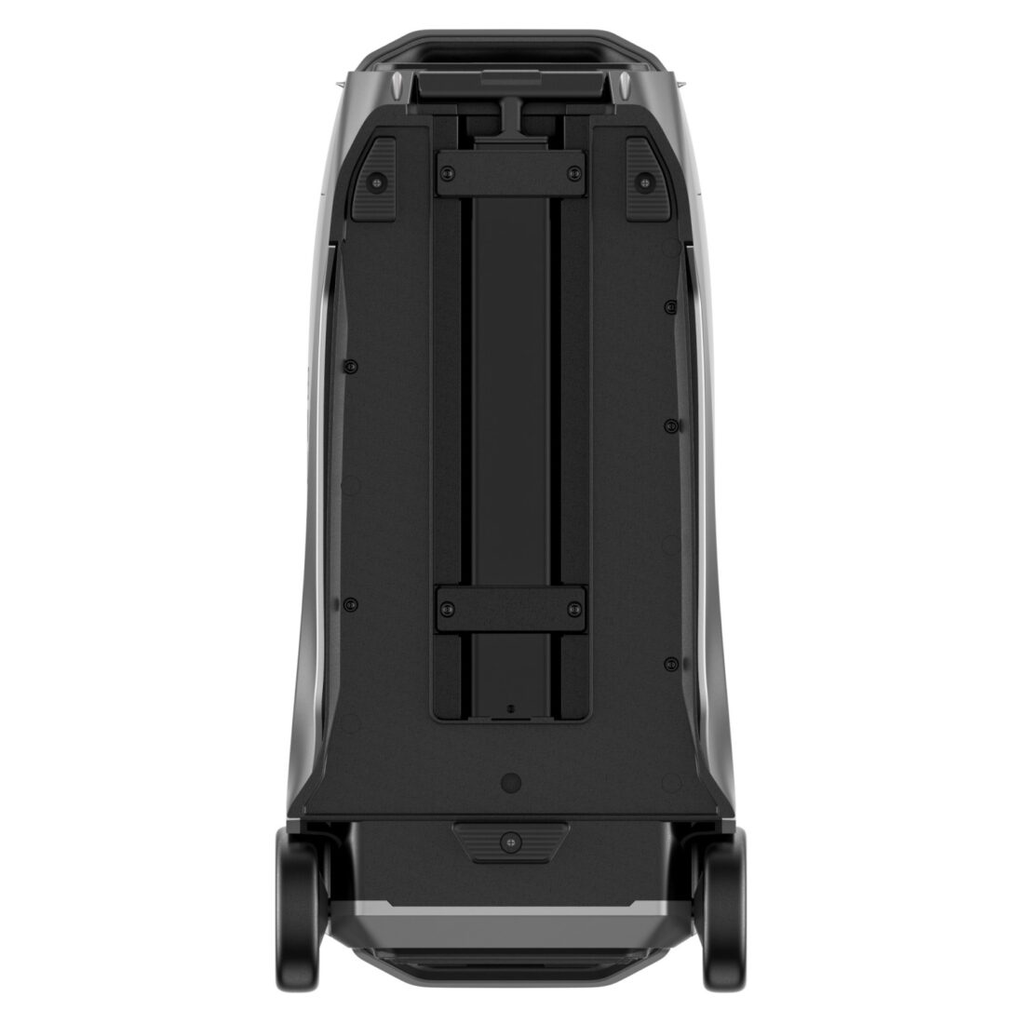

• Design: Rugged build with wheels and grip protectors, IP65 battery pack

Specifications:

Rated Capacity

• 4096Wh

Expandable Capacity (Single Unit)

• Up to 12kWh (2 × DP3 Extra Battery)

Expandable Capacity (System*)

• Up to 36kWh (6 × DP3 Extra Battery)

• Maximum 48kWh**

AC Output

• Continuous Output: 4000W (6000W with X-Boost)

• Surge Output: 8000W

• Voltage: 120/240V~16.7A 60Hz

• UPS: 10 ms

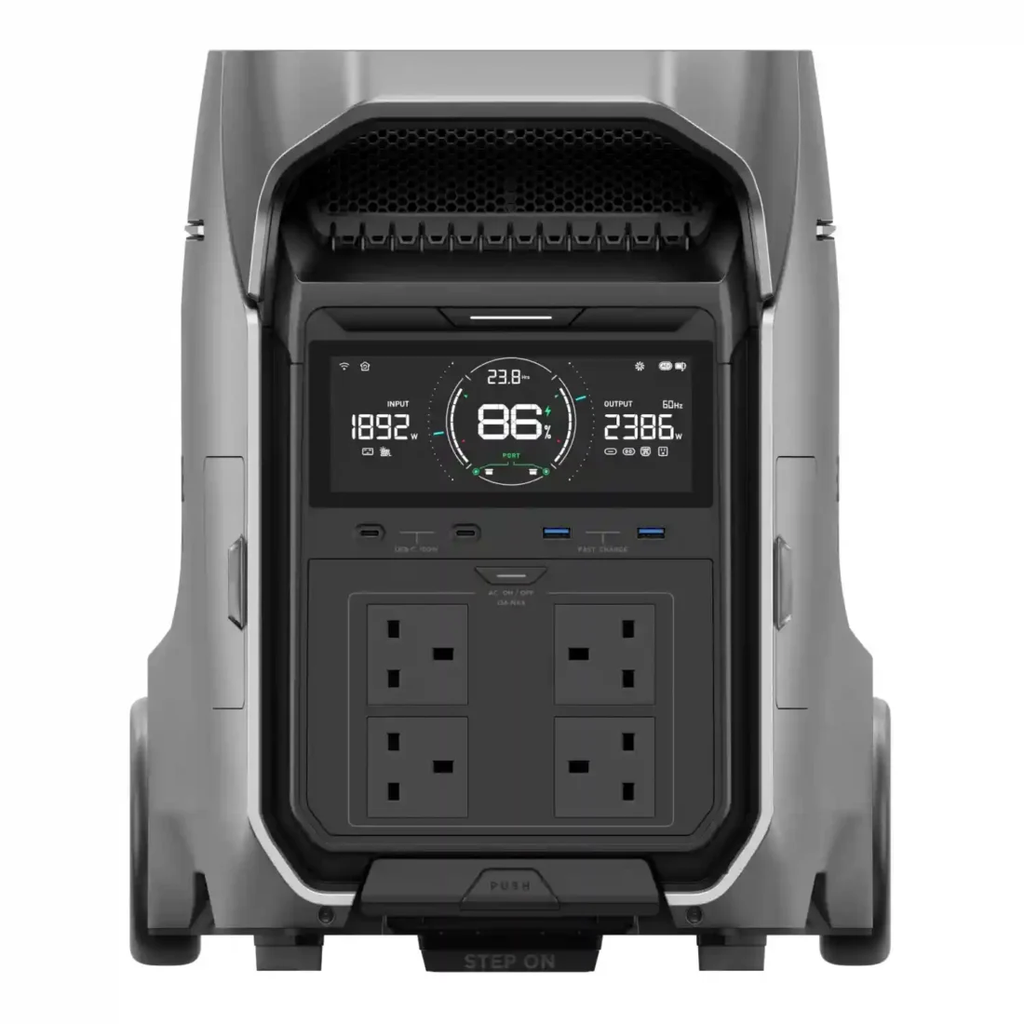

Ports & Outputs

• 120V AC Output: 4 × NEMA 5-20R (20A), 1 × NEMA TT-30R (30A)

• 240V AC Output: 1 × NEMA 6-20R (16.7A)

• 120/240V AC Output: 1 × NEMA L14-30R (16.7A)

• 12V DC Output: 2.6V⎓30A (378W total)

  • DC5221: 1 × 5A Max

  • Anderson Port: 1 × 30A Max

• USB-A: 2 × (5V-2.4A / 9V-2A / 12V-1.5A), 18W Max each, 36W total

• USB-C: 2 × (5/9/12/15/20V-5A), 100W Max each, 200W total

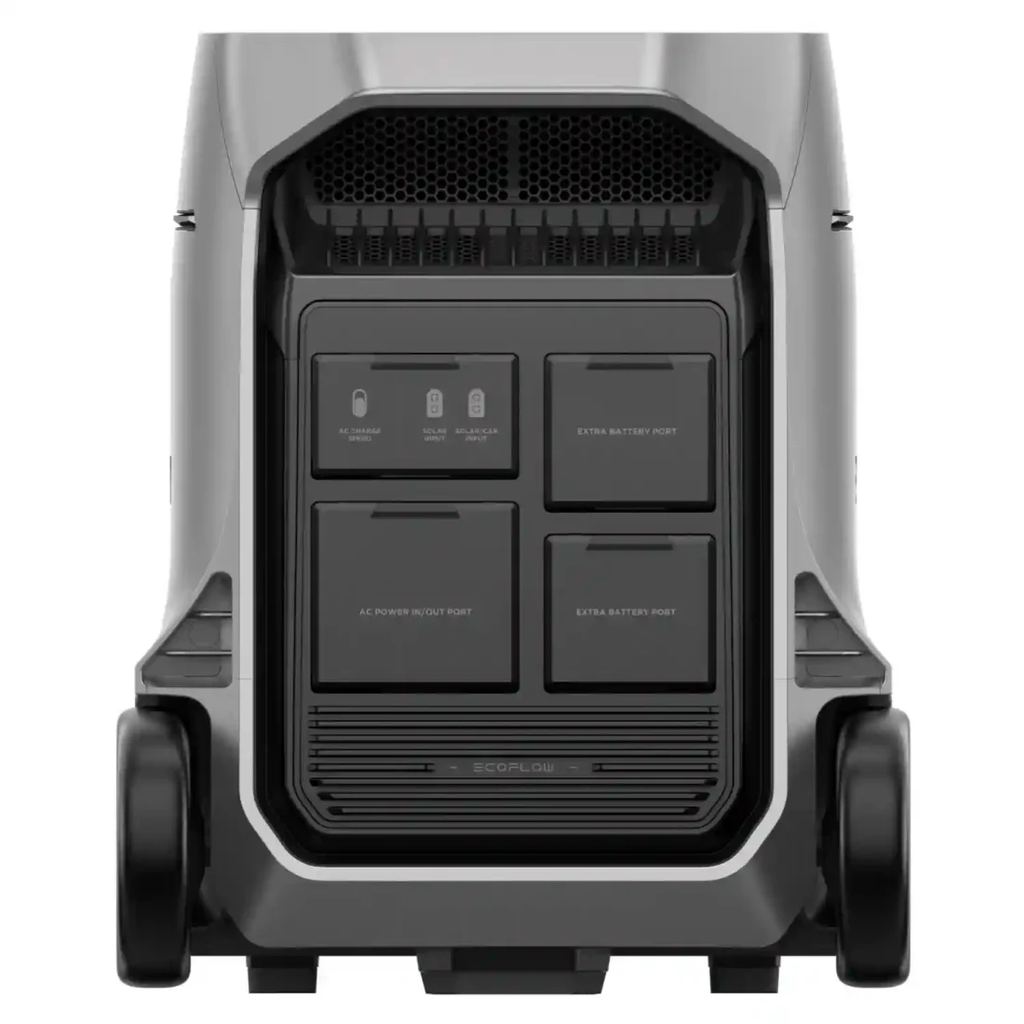

Charging Inputs

• AC Charging Input:

  • Charge Only: 100-240V~15A 50/60Hz

  • Bypass Mode: 100-120V~15A (3 hrs max) / 12A continuous

• Solar Input: 2600W total (2 ports)

  • High-PV Input: 30V–150V⎓, 15A, 1600W Max

  • Low-PV Input: 11V–60V⎓, 20A, 1000W Max

• Car Charging Input:

  • 12V⎓8A Max / 48V⎓20A Max

Battery & Build

• Cell Chemistry: LFP (LiFePO₄)

• Cycle Life: 4000+ cycles to 80% capacity

• Battery IP Rating: IP65

• Scalability (System*): 12kW

• Warranty: 5 years

Temperature Range

• Discharging: -10°C to 45°C (14°F to 113°F)

• Charging: 0°C to 45°C (32°F to 113°F)

• Storage: -10°C to 45°C (14°F to 113°F)

Connectivity

• WiFi 2.4GHz / Bluetooth / CAN

Physical Specs

• Dimensions: 410.4 × 341 × 693 mm (16.16 × 13.43 × 27.28 in.)

• Net Weight: 51.5kg (113.54 lbs)

What’s in the Box

• 1 × EcoFlow DELTA Pro 3

• 1 × AC Charging Cable

• 2 × Grip Protectors

• 1 × Quick Start Guide

• 1 × Safety Guide

• 1 × Warranty Card
